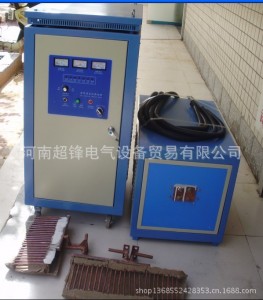

160KW high frequency diathermy forging furnace
160kw- high frequency induction heating equipment parameters and characteristics:
1, power: than the electron tube power 30%, than frequencypower SCR 20%.
2, stable performance, full protection, no worries.
3, heating speed, no oxidation layer, small deformation.
4, small volume, light weight, convenient installation.
The 5, sensor isolation by transformer, safety.
6, environmental protection: no pollution, noise and dust.
7, strong adaptability to various: workpiece heating.
8, the temperature and the heating time can be controlled accurately, high machining quality.
Main application: inner wall quenching, heat treatment quenching machine guide, automobile, motorcycle, wrenches and other parts. The larger diameter bolt, nut hot upsetting, crankshaft, camshaft quenching
Model / configuration 160
The working power three-phase 380V/50HZ
Working voltage 342V-430V
The maximum input current 220A bus
The maximum output current of 160KVA
The oscillation frequency of 15-35KHZ
The efficiency of 100%
Load sustained rate of 100%
The cooling water flow rate 30L/min (0.1mp)
Cooling water pressure 0.2-0.3mpa
Host weight 95kg
The weight of 120kg transformer
Machine dimension 650*520*1100
Transformer size 500*800*580
The host color blue / white
Transformer color blue / white
Special application field of gear 50 bar diathermydiathermy forging
The water temperature at 50 ℃ protection
