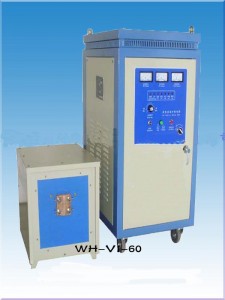

Henan Chao Feng electrical 60KW ultra audio frequency
Henan Chao Feng electrical 60KW super audio range:
Quenching class:
1 kinds of gear, chain wheel, quenching axle;
Quenching 2 half shaft, spring, fork, rocker arm, valve,ball head pin and other auto parts.
3 kinds of internal combustion engine fittings, quenchingspeed reducer fittings;
Quenching machine tool 4 of the machine tool industry(lathe, milling machine, planer, punching etc.).
5 kinds of pliers, scissors, quenching ax, hammer, hand tools.
6 concrete inner wall, concrete pump quenching quenching
Diathermy class:
Hot upsetting 1 kinds of high strength bolts, nuts;
2 hot rolled hemp flowers cobalt;
The 3 diameter within 80 of all parts of the diathermy forging;
Welding:
1 kinds of welding diamond PDC bit;
The welding of 2 kinds of hard alloy cutter, saw blade;
3 kinds of welding, drill bit, drill rod, pick coal drill,drill and other mining accessories wind;
The main technical parameters of 60KW super audio quenchingpower:
The working power supply
Three phase 380V/50Hz
The cooling water flow rate (host)
25L/Min (0.1MPa)
Operating voltage range
342V to 430V
The cooling water flow rate (transformers)
18L/Min (0.1MPa)
Maximum input current
90A bus
Cooling water pressure
0.1-0.3Mpa
The maximum output power
60KVA
Host weight
70kg
Oscillation frequency
20 – 100KHz
Transformer weight
55kg
Efficiency
90%
Host size (mm)
590*450*780
Continuous load rate
100%
Transformer size (mm)
420*355*450
